Infrared Electric Heating
Welltherm’s flat panel infrared heater is discreet and functional. With a slimline profile, it is perfect for wall or ceiling mounting. It features a wireless timer and room thermostat, and is available in 710W, 910W and 1210W power outputs. The heater has a steel surface, finished in white, which is robust and easy to clean. There is a small, medium and large sizes available (1192 x 592, 1492 x 592 and 1500 x 750 millimetres). Using the latest energy efficiency technology, the Welltherm infrared room heater is efficient and economic to run.
We like our home to be constantly comfortable without have to think about the heating. Your heating system should warm the room quickly when needed. Then maintain that level of comfort, so you can sit back and relax. This is provided by our Welltherm infrared heaters.
Infrared electric heaters are an energy efficient and cost-effective way to heat your home. Welltherm’s metal infrared heater features a flat white front panel. Perfect for modern interiors. The ultra-thin panel means they’re unobtrusive in the room. It’s easy to find a space to install an infrared heater as they can be mounted horizontal, vertical, or even on the ceiling for a completely unnoticeable and minimalist installation.
Unlike normal electric heaters, infrared heaters emit infrared waves from the front panel. They create a feeling of comfort similar to the radiant heat from the sun. This stand out feature is reported as a great benefit our by customers.
Infrared heaters don’t produce a ‘dry air feeling’ and are completely silent when in operation
Infrared, a better heating experience
Infrared heating technology has many benefits. However, first it’s important to know why infrared is different to other heating methods.
The main difference from conventional heating systems is that infrared heaters do not directly warm the air in the room. Conventional electric heaters will only heat the air, which can create an uncomfortable dry or stuffy feeling. Instead, infrared electric heaters emit direct thermal radiation via infrared waves. This creates a more comfortable living environment.
The infrared waves from the heater are absorbed by physical objects, which become warm to touch and store heat. This means the room can stay warm for three times as long compared to heaters which warm the air).
Infrared electric heaters provide constant drying of the walls. Leaving very little chance for moisture to form and mould to grow.
Also, there’s a reduction of dust circulating in the room, improving the air quality in the room, benefiting people with allergies or other breathing difficulties.
ESHC, Efficient Heating Technology.
The problem with the majority of infrared heaters is that they do not work as well as intended. The heating panels do not get hot enough to emit truly effective infrared waves. This means they are essentially just a hot plate on the wall, not providing the true infrared effect.
ESHC technology is what sets Welltherm’s infrared heater’s apart from the rest. Most infrared panels have a maximum surface temperature around 90°C, whereas Welltherm’s is 107 °C. Resulting in more powerful and effective heating.
Welltherm’s research and development has lead to technological advancements, making their heaters some of the most energy efficient on the market. Welltherm’s use ESHC technology ensures a strong and effective infrared effect. With ESHC technology more than 70 % of the heating surface is covered by heating conductors. This results in excellent heat distribution and efficiency (for most other infrared products this value is between 6 % and 23 %). Basically, the larger the proportion of radiation of an infrared heating system, the more efficiently electrical energy will be turned into thermal heat.
For maximum quality and efficiency, the ESHC heating conductor’s geometry is made from highest-quality stainless steel. Reverse heating circuits reduce unwanted magnetic fields to a minimum.
With an infrared heater, its important the heat is transferred into the front panel. Heat transmission to the rear of the heater is simply a waste of energy. In order to reduce the loss of heat a thermally insulating mat is used to the rear of the panel and the heating element is surrounded with thermally resistant insulation. This leads to optimum heat transfer to the front of the infrared heater, with maximum safety.
Our Infrared electric radiators are controlled remotely by an easy to use wireless room thermostat which is battery operated.
You can program the timer to operate up to 3 times every day. It can also run at different times each day if required. The required room temperatures can then be set, ensuring efficiency and meeting your requirements.
The wireless room control can wall mounted or placed on a mobile stand. It can be locked to prevent unwanted program changes.
Function and Convenience
Welltherm are a German manufacturer of infrared heaters. With years of research and and development, they have managed to produce technology which makes their infrared electric heaters some of (if not the most) effective and efficient heaters on the market.
100% made in Germany, manufactured to the highest quality standards and backed by a comprehensive 5 year guarantee, you can buy with absolute confidence.

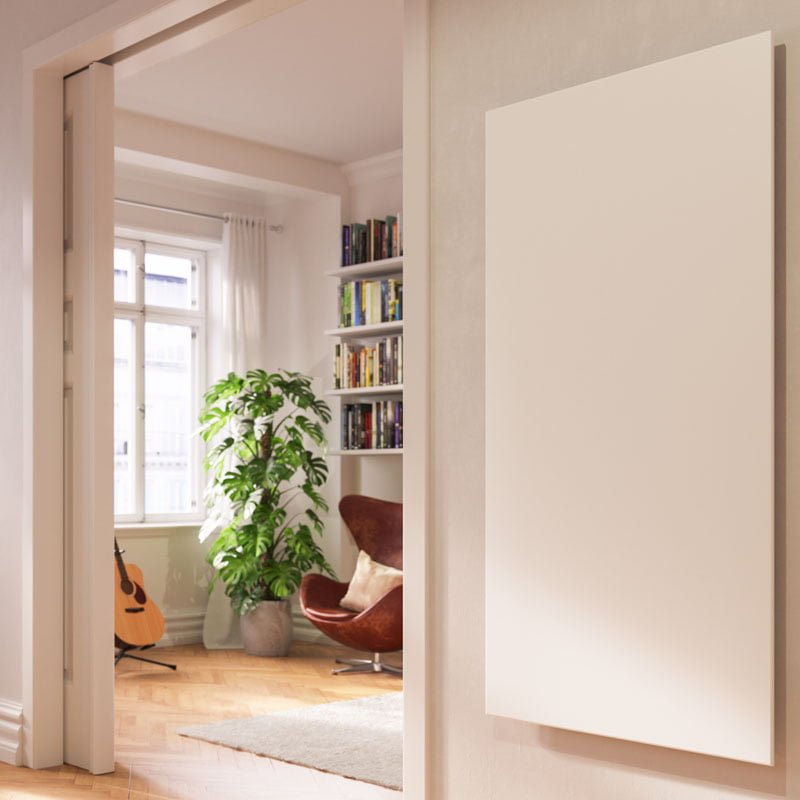

The versatility and mounting options of infrared heaters make them the most convenient heating system. They can be mounted horizontal or vertical, perfect if your short on wall space.
Also a unique features of infrared heaters is that they can be mounted on the ceiling. The celling is best position for the distributing the infrared waves. As it removed obstacles which could block the heat. Additionally when ceiling mounted the heater is out of touching distance, removing the possibility of burning yourself on the heater’s hot surface.
- Colour: White
- Power supply: 1/N/PE 230 V
- Frequency: 50 Hz
- IP rating: IP21
- Power cable: 1850 mm, white
|Model||Power, W||Dimensions, mm||Heated Space, m3||Weight, kg|
|PB0710||710||1192 x 592||10-14||14|
|PB0910||910||1492 x 592||3-18||17|
|PB1210||1210||1500 x 750||17-24||21.5|
Getting the right size heater is essential. Otherwise, the room will not be sufficiently heated . We will be happy to advise you in selecting the right size radiator for your needs. So, please feel free to get in touch!
