Description
Dual Fuel Towel Rails with R4 Smart Thermostatic Element
The Aura straight black heated towel rail is supplied with a dual fuel kit. This includes dual fuel valves and a smart thermostatic electric heating element.
With the dual fuel kit you can heat the rail from either the central heating system or the electricity supply. This means even when your central heating system is tuned off, you can still dry towels, by switching to the electrical element. When using the electrical side, you can use the elements smart features including WiFi control.
The Aura straight back is manufactured to the highest quality standards. This is eye catching when stood next to cheaper towel rails. Also the R4 version has WiFi control and smart features, which will reduce energy consumption and running costs.
R4, WiFI Controllable Towel Rails.
With the R4 its easy to control your bathroom towel rail or radiator.
2 ThermostatsTemperature control over the Radiator’s surface temperature and air temperature. |
TimerFully programmable 24/7 timer |
Open WindowOpen window detection, will turn radiator off to save energy. |
Lot20Fully ERP LOT20 Eco Design compliant |
LockLock the control panel to protect against unauthorised adjustment. |
Manual BoostThe R4 gives you full control over the towel and the bathroom heating. |

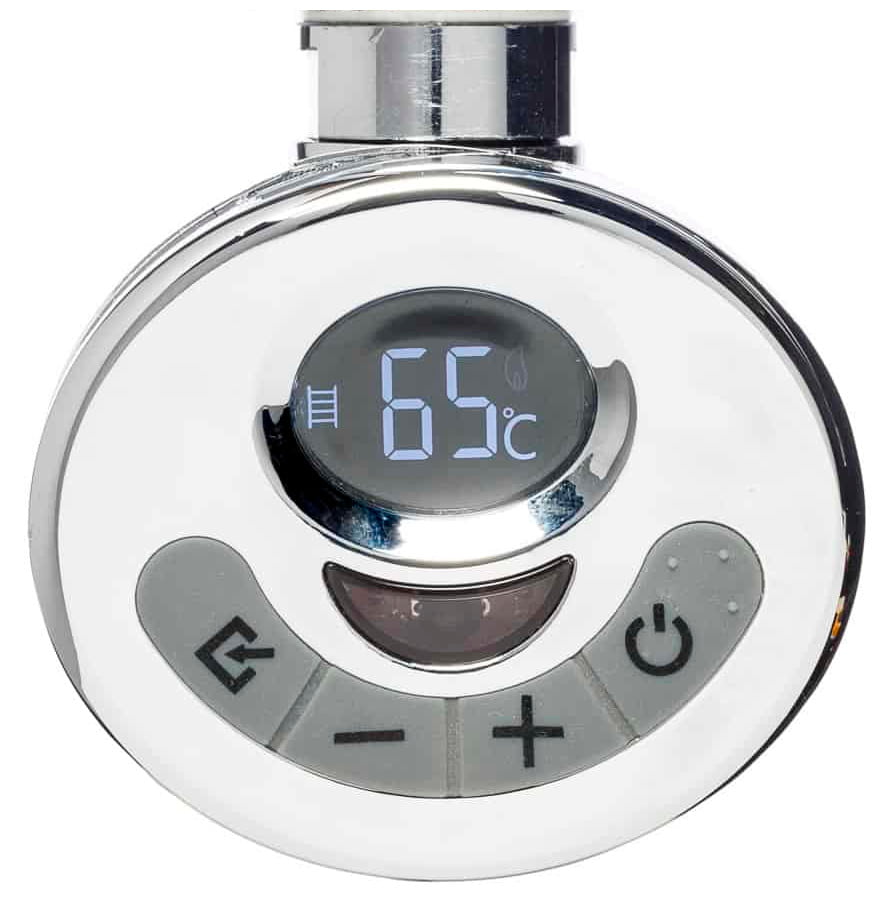

The R4 can also be used without WiFi from control panel. With this the radiator can be switched on / off, the thermostat can be adjusted and a 2 – 4 hour boost facility can be set.

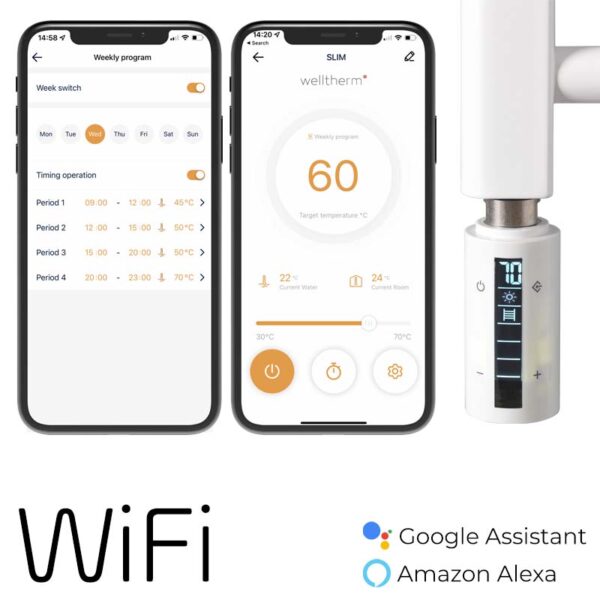

Smart WiFi App
From the App, the electrical element, can be controlled with your smart phone or tablet. Making it easier than ever to control your bathroom.
This includes the timer, which will let you programme when the towel rail is on. So you don’t waste money by leaving the radiator on constantly.
With 2 thermostats the R4 can monitor either the room’s air temperature, or the radiator’s surface temperature:
- Select how hot the surface temperature is.
- The R4 can be used as an LST towel rail. This is useful in preventing people burning themselves. Its also ideal if you’re drying towels, as the thermostat recording is isolated from external heat sources, which would interfere with your towel drying.
- The air temperature thermostat regulates the radiator based on room temperature.
The R4’s state of the art technology is integrated into a single element head. Removing the need for additional unsightly connections and receiver boxes. Everything is built into the element.
Superior Quality. Higher Outputs.
The Aura has a 5 year guarantee for the radiator and 2 years for the element, giving you long term peace of mind. Aura towel rails are ASTMB117 tested and salt tested for 250 hours. This strict quality testing ensures a long lifespan for the radiator.
- 24/7 time control
- Measures air temperature from 18°C – 32°C
- Controls water temperature from 30°C – 70°C
- Built-in open window/door recognition
- ERP Lot 20 compliant
- Rated IP64 for use in bathroom zones
- Manual control override directly on the element with 2 & 4 hour boost
- Automatic frost protection @ 7°C
Dual Fuel – Year Round Heat.
Dual Fuel means the towel rail can be heated from the central heating system or as an electric rail. This allows for heat during the summer when, hopefully, the climate is warm enough for you to turn off your central heating. This is an extremely simple procedure – you simply close one valve and turn the electric element on.
Please Note: The dual fuel kit will arrive in a separate tube.
Product Specifications (Black)
| Model | Dimensions (mm)
H x W x D |
Pipe
Centres |
CP
Element Wattage |
Thermostatic
Element Wattage |
Output
Δ T60°C BTU’s |
|---|---|---|---|---|---|
| 580 | 800 x 500 x 83 – 105 | 455 | 200 | 300 | 1414 |
| 510 | 1000 x 500 x 83 – 105 | 455 | 300 | 300 | 1923 |
| 512 | 1200 x 500 x 83 – 105 | 455 | 300 | 600 | 2121 |
Additional Sizes (Black)
| Model | Dimensions (mm)
H x W x D |
Pipe
Centres |
CP
Element Wattage |
Thermostatic
Element Wattage |
Output
Δ T60°C BTU’s |
|---|---|---|---|---|---|
| 480 | 800 x 400 x 93-113 | 355 | 150 | 300 | 1492 |
| 515 | 1500 x 500 x 93-113 | 455 | 300 | 600 | 3536 |
Quality Tested
- VDE approved
- CE approved. Compliant with BS EN60335-1
- Splashproof – IPX4 rated, suitable for bathroom zone 1
- Safety cut-out
- ASTMB117 anti-corrosive salt tested to 250 hrs
