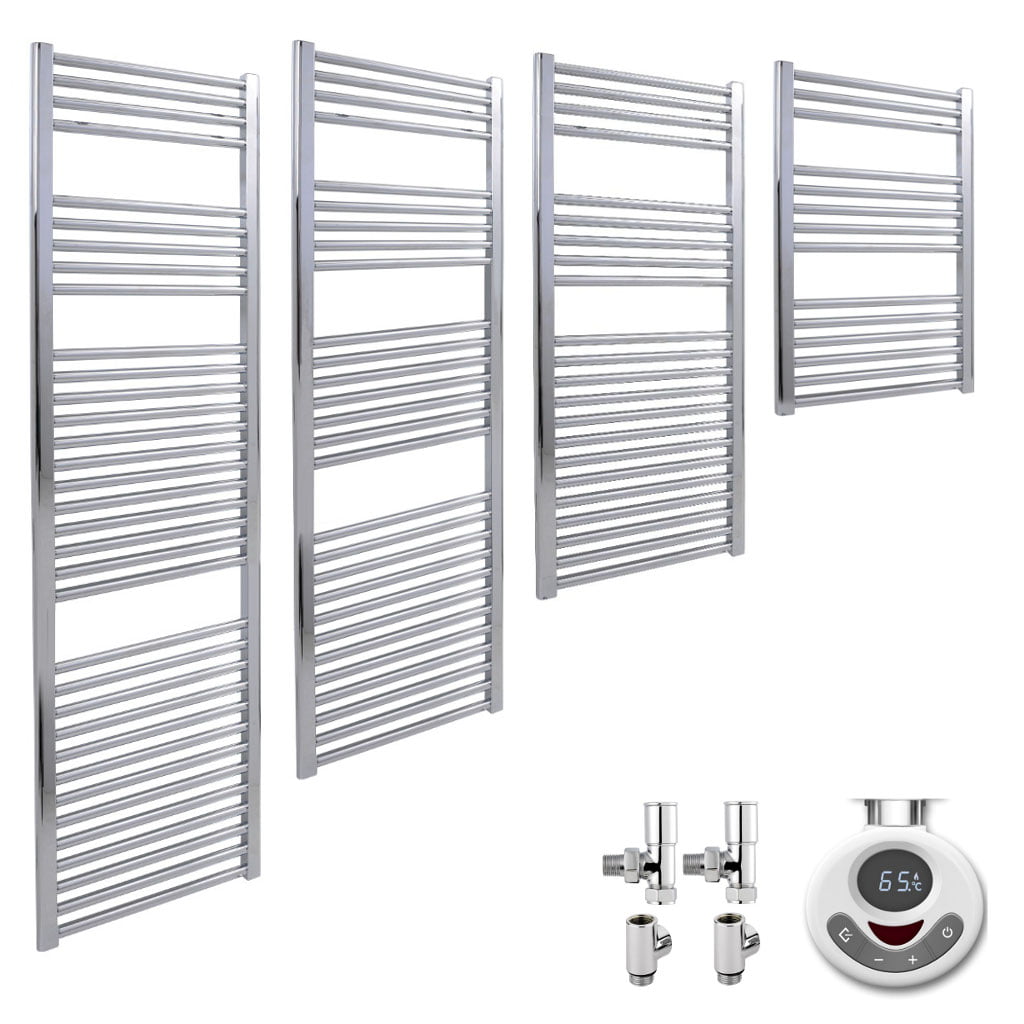

Aura 25 Straight Chrome Dual Fuel Heated Towel Rail, Thermostatic + Timer

£221.00£350.00 inc. VAT

  • Aura 25 Heated Towel Rail – Straight
  • For dual fuel connection to mains electric and central heating
  • Prefilled with antifreeze solution
  • Supplied with dual fuel radiator valves and the R3 thermostatic electric element (not fitted)
  • Features: Timer, Thermostatic Control (Controls water temperature from 30°C – 70°C), Remote, Manual Controls, Controls water temperature from 30°C – 70°C,2 / 4 Hour Boost, Open Window / Door Recognition, Lot 20 Compliant
  • Splash Proof (IPX4-rated)

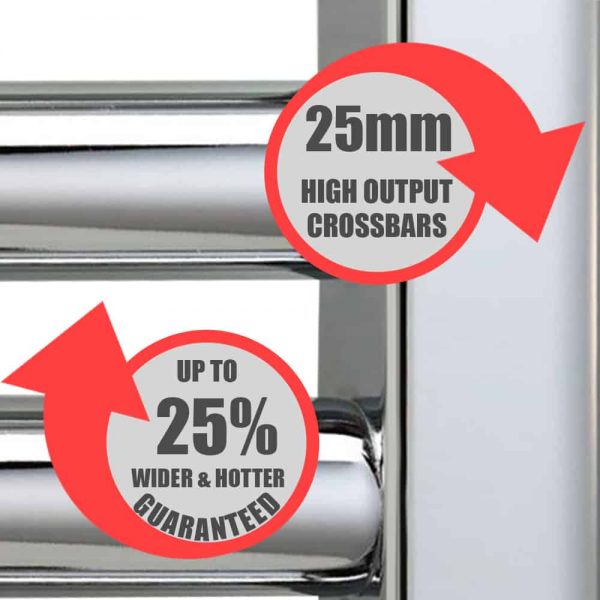

  • Tube Profile: 25mm round bars
  • Style: Standard ladder rail
  • Height Options: 800mm, 1200mm, 1500mm, 1800mm
  • Width Options: 300mm, 400mm, 500mm, 600mm
  • Colour: Chrome
  • 1/2” BSP Sockets
  • Pipe centres = width of towel rail less 45mm
  • Wall Projection = 93 – 113mm (adjustable)
  • Wall Mounted (fixing kit supplied)
  • 10 year guarantee on towel rail. 2 year guarantee on element

Technical Drawings | User Manual – R3 Thermostatic Element

Payments can be made by Credit / Debit Cards and Paypal.

Description


Aura 25 Dual Fuel Thermostatic Towel Rail (Straight Chrome)

Our Aura 25 R3 straight chrome dual fuel thermostatic heated towel rails are manufactured to be the highest quality towel radiators, offering unbeatable value for money. Designed with energy efficiency in mind, R3 dual fuel towel warmers are eco design / lot 20 compliant, reducing energy consumption and running costs. With the correct size matched to the room, the towel radiator can be used as the room’s primary heat source.

The Aura 25’s quality is eye-catching when stood next to cheaper towel rails. Crafted with 1.5mm steel, the radiator around 50% thicker than the average towel rail, increasing surface area and maximising heat emission. The result is a more substantial towel warmer, with increased prevention against defects, including rust and pinhole leaks.

This dual fuel towel rail connects to both central heating and electric, designed so that you can use it all year round. The accessories, including valves and electric element, are packaged separately from the towel rail to ensure a safe delivery.




Superior Quality, Higher Outputs.

The Aura 25 straight chrome dual fuel thermostatic electric towel rail is ASTMB117 tested and salt tested for 250 hours. This strict quality testing ensures the long lifespan of the radiator. Our towel rails are professionally converted to electric, by ourselves, at our North Yorkshire factory, where it is filled with a radiator solution. This ensures smooth and constant heat across the radiator and prevents interior corrosion. This radiator has a 10 year guarantee, so that you have total peace of mind. We have years of experience, so be assured you will not have any hassle with the electric towel rail.

By increasing the surface area, the heat emission potential is maximised. Which in turn, produces a higher BTU output to keeps your bathroom warm. We design our bathroom radiators with quality, aesthetics and efficiency in mind. Delivering more cross bars, more surface area and a longer warranty.






Complete Control – R3 Generation.

The R3’s state of the art technology is integrated into a single element head to ensure a tidy installation, removing the need for additional unsightly connections and receiver boxes. With 7-day timer alongside the adjustable temperature control for the room or radiator, programme the radiator to be on exactly when it’s needed – rather than wasting money constantly having the towel rail on.  The R3 comes with open window detection, turning the towel rail off automatically when your trying to cool down the room.

The element’s settings can be changed with the user-friendly remote control. The timer’s schedule is programmed and stored using the remote. As the information is stored in the remote rather than the radiator, it’s quick and easy to re-programme the element should a power cut wipe the memory. Also, multiple elements can be programmed from one remote. The R3 also has manual controls on the front face, allowing temperature adjustment and a 2 – 4 hour boost facility if the remote is ever lost.

The R3 towel radiator has two thermostat options. Towel Rails, especially in a chrome finish, can be extremely hot to touch. Controlling the  surface temperature lets you choose how hot the towel rail will be to touch.  This is useful in preventing the risk of children or the elderly from burning themselves. It is also ideal if you’re drying towels, as the thermostat recording is isolated from external heat sources, which would interfere with your towel drying. If the radiator is used as the room’s heat source the air temperature thermostat will regulate the radiator based on room temperature.

The element and remote control have an anti-tamper lock. Create your own pin code to unlock the radiator and prevent the element’s setting from being messed around with. This makes it ideal for use in hotels wash room and spaces with young children.

Features

  • IR Remote controller
  • 24/7 time control via remote control
  • Measures air temperature from 18°C – 32°C
  • Controls water temperature from 30°C – 70°C
  • Built-in open window/door recognition
  • ERP Lot 20 complaint
  • Rated IPX4 for use in bathroom zones
  • 24/7 time control via remote control
  • Manual control override directly on the element with 2 & 4 hour boost
  • Automatic frost protection @ 7°

24 Hour Timer

Create your own heating schedules that work around your lifestyle. With 4 on and off times per day, allowing compete flexibility and control.



Intrinsic Heat Control

With the R3, accurately monitor the air temperature or rail’s surface temperature. So, whether you’re using the radiator to dry linen or heating the room, the R3s got you covered.

Open Window Recognition

The R3 recognises an open window / door and shuts off. Meaning, that your electricity bill isn’t spent on heating the great outdoors. This function can be switched off.

Temperature Lock

Completely lock the temperature or timer of the radiator. Set a maximum temperature that the radiator will reach. Ideal for public area’s or situations that require a maximum surface temperature.

Pin Protection

Anti-tamper pass code lock on remote control. Set a 4 digit code that has to be input to access the control.

IR Controller

Wireless communication with the R3 remote controller. Weekly programmes and settings adjustment with the remote controller supplied with the R3 range.


Dual Fuel – Year Round Heat.

Dual Fuel means the towel rail can be heated from the central heating system or as an electric rail. This allows for heat during the summer when, hopefully, the climate is warm enough for you to turn off your central heating. This is an extremely simple procedure – you simply close one valve and turn the electric element on.

Dual Fuel – Electric Mode

To use in electric mode, you simply tighten one of the dual fuel valves until it is closed and switch the element on.


Angled Chrome Dual Fuel Radiator Valves, Round Type, Solid Brass, 1/2″ BSP 15mm. For Heated Towel Rails / Warmers

Dual Fuel Valves – Central Heating Mode

With the electric element turned off, your dual fuel towel rail becomes like any other radiator in the house. When the central heating is switched on, the towel rail warms up.

Dual Fuel Assembly

Our angled dual fuel radiator valves are a study and well made, composed of solid brass with chrome plating. The valves are screwed into the bottom of the towel rail’s vertical pipes. The electric element is then scrbewed into the bottom of one of the dual fuel valves. The opposing valve has a blank plug connected to the remaining socket. The central heating pipes connect at a 90 degree angle to the towel rail. So they can come straight out of the inside of the wall, or run horizontally along the wall to connect to the valves.


Aura 25 Anthracite Straight Towel Warmer / Heated Towel Rail Radiator - Dual Fuel

Alternative Dual Fuel Valve Option

If you need the central heating pipes to connect to the towel rail vertically, by coming up out of the floor, we can supply our alternative dual fuel valve kit on request.  This consists of two straight radiator valves and two t-pieces. The t-pieces are inserted into the towel rail first, and the valves attach the their right angled socket, allowing the dual fuel towel rail to accept pipes from below.

Easy Wall Mount. Adjustable Brackets.

The quality of the Aura 25 makes it heavier than normal. As a result we have to supply the best fixing system available.

The Bray’s brackets have internal metal threads for a more secure fitting against the wall. The brackets also provide an adjustable wall projection. This allows you change the wall projection between 93-113mm, making it ideal if the wall is uneven e.g a half-tiled wall. Cheaper towel rails provide less secure brackets which are flimsy at best.

The top of the Aura 25 towel rail is well-finished and tidy. One side is flat without obstruction, whilst the other side houses the chrome air vent. There are no nasty nickel plated vents and blank plugs on display.

Product Specifications

ModelDimensions (mm)
H x W x D
Bar
Config
Pipe Centres (mm)PTC Electric Element (Watts)Thermostatic Element (Watts)Output
Δ T50°C
Watts / BTU’s
Output
Δ T60°C
BTU’s
380800 x 300 x 93-1133-5-6255100300177 / 604763
480800 x 400 x 93-1133-5-6355150300226 / 771975
580800 x 500 x 93-1133-5-6455150300275 / 9381186
680800 x 600 x 93-1133-5-6555200300324 / 11051397
3121200 x 300 x 93-1134-5-13255200300273 / 9311177
4121200 x 400 x 93-1134-5-13355200300350 / 11941509
5121200 x 500 x 93-1134-5-13455300300428 / 14601846
6121200 x 600 x 93-1134-5-13555400600505 / 17232178
5151500 x 500 x 93-1134-5-7-12455300300534 / 18222303
6151500 x 600 x 93-1134-5-7-12555400600631 / 21532721
4181800 x 400 x 93-1134-5-12-13355400600521 / 17782247
5181800 x 500 x 93-1134-5-12-13455600600638 / 21772752
6181800 x 600 x 93-1134-5-12-13555600600754 / 25733252



Quality Tested

  • VDE approved
  • CE approved. Compliant with BS EN60335-1
  • Splashproof – IPX4 rated, suitable for bathroom zone 1
  • Pre-filled heating solution protected to -8°c
  • Safety cut-out
  • ASTMB117 anti-corrosive salt tested to 250 hrs

Additional information

WeightN/A
DimensionsN/A
MPN

Power (Watts)
fittings
Main Colour
Manufacturer
model
pipe-centres
Power Output
screens
Towel Rail Shape
color
size
style
style-type
Thermostatic Output
timer-style
type
Electric Output
wall-projection
description
receivers
Material

Towel Rail Features

Child Lock, Open Window Recognition, Remote Control, Thermostat – Variable Temperature, Timer

Mounting Type

Wall Mounted

Mirror Features
Electric Heater Type
Electric Heater Features
btu
Material

Mild Steel

Control

dual-fuel

att-type
timer
Brand

att-brand
att-range
Sub-Type
Towel Rail Connection

Thermostatic Electric Dual Fuel

Splash Proof Rating

IPX4

Height in mm

, , ,

Width in mm

, , ,
