Description
WiFi and Non WiFi Control
R4 towel rails can be controlled with and without WiFi. The inbuilt WiFi connectivity, which will let you control the radiator using the smart App.
However the r4 is also supplied with a remote control. With the remote, you have full control over the radiator, without having to use WiFi.

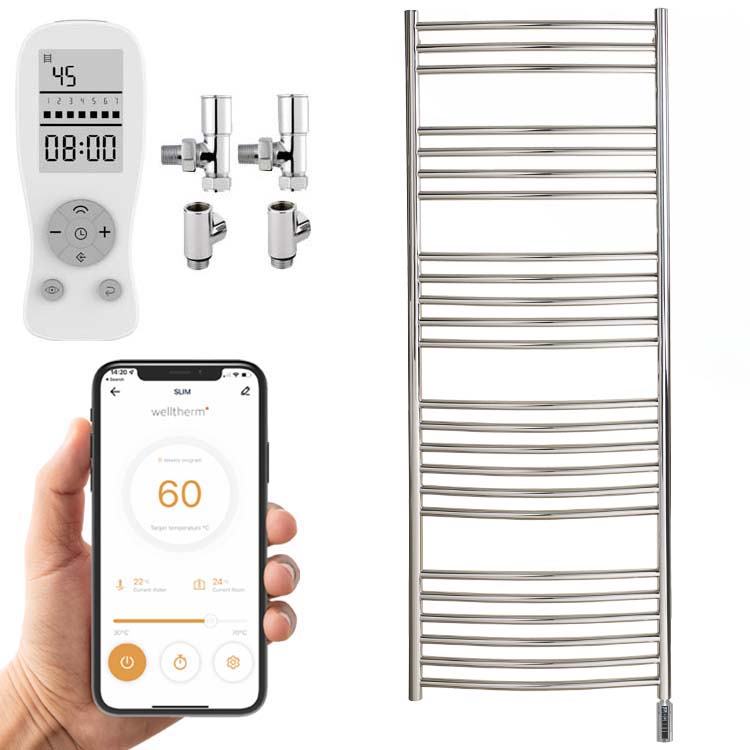

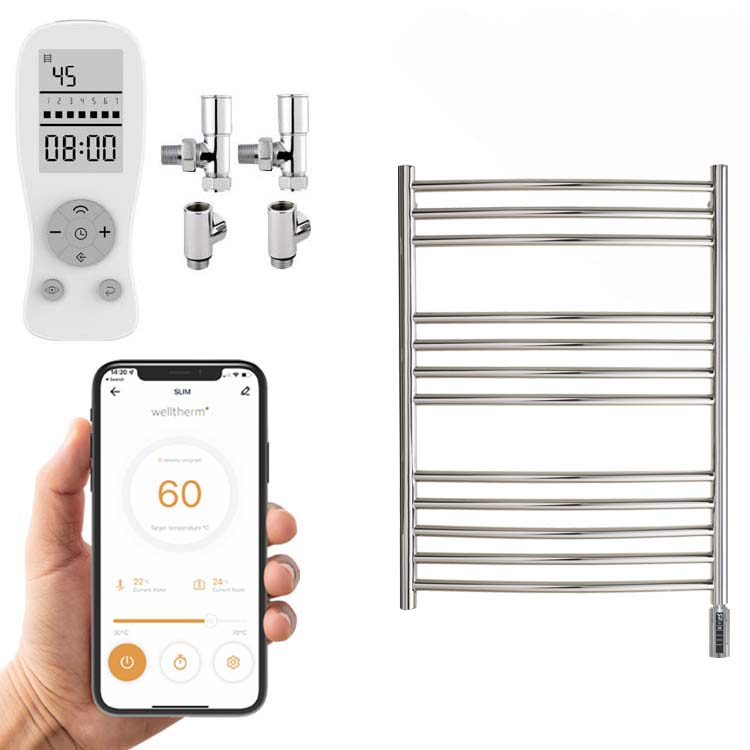

Aura Steel Thermostatic Electric Heated Towel Rail
The Aura Steel stainless steel towel rail is perfect for drying towels and room heating the room. Stainless steel towel rails are superior to the more commonly used chrome versions. This is because stainless steel has better heat emission, resulting in higher outputs and more efficient heating. Also, stainless steel is harder wearing which means its less likely to degrade and rust over time.
The Aura Steel is made from quality grade 304 stainless steel which is highly polished to a fluid mirror like finish. The overall quality is eye-catching when compared with cheaper alternatives. The Aura Steel is a thicker and more substantial towel rail, protected from defects such as rusting and pinhole leaks.
This towel rail is supplied with a dual fuel kit which includes dual fuel valves and a smart thermostatic electric heating element.
The dual fuel kit will enable you to heat the rail from either the central heating system or the electricity supply. This means, even when your central heating system is tuned off, you can still dry towels by using the electrical element. When using the electrical side, you can use the elements smart features including WiFi control.
Smart WiFi App
From the App, the electric element can be controlled with your smart phone or tablet.
This includes the timer, which will let you programme when the towel rail is on. So you don’t waste money by leaving the radiator on constantly.
With 2 thermostats the R4 can monitor either the room’s air temperature, or the radiator’s surface temperature:
- Select how hot the surface temperature is.
- The R4 can be used as an LST towel rail. This is useful in preventing people burning themselves. Its also ideal if you’re drying towels, as the thermostat recording is isolated from external heat sources, which would interfere with your towel drying.
- The air temperature thermostat regulates the radiator based on room temperature.
The R4’s state of the art technology is integrated into a single element head. Removing the need for additional unsightly connections and receiver boxes. Everything is built into the element.
R4, Controllable Towel Rails.
With the R4 its easy to control your bathroom towel rail or radiator.
2 ThermostatsTemperature control over the Radiator’s surface temperature and air temperature. | TimerFully programmable 24/7 timer | Open WindowOpen window detection, will turn radiator off to save energy. |
Lot20Fully ERP LOT20 Eco Design compliant | LockLock the control panel to protect against unauthorised adjustment. | Manual BoostThe R4 gives you full control over the towel and the bathroom heating. |
The R4 can also be used without WiFi from control panel. With this the radiator can be switched on / off, the thermostat can be adjusted and a 2 – 4 hour boost facility can be set.
We also have a non WIFI remote, which can be purchased separately. With this, the radiator can be completely controlled without WIFI.
- IR Remote controller
- 24/7 time control via remote control
- Measures air temperature from 18°C – 32°C
- Controls water temperature from 30°C – 70°C
- Built-in open window/door recognition
- ERP Lot 20 compliant
- Rated IPX4 for use in bathroom zones
- 24/7 time control via remote control
- Manual control override directly on the element with 2 & 4 hour boost
- Automatic frost protection @ 7°C
Superior Quality. Higher Outputs.
The Aura Steel has a 10 year guarantee for the radiator and 2 years for the element, giving you long term peace of mind.
Dual Fuel – Year Round Heat.
Dual Fuel means the towel rail can be heated from the central heating system or as an electric rail. This allows for heat during the summer when, hopefully, the climate is warm enough for you to turn off your central heating. This is an extremely simple procedure – you simply close one valve and turn the electric element on.
Please Note: The dual fuel kit will arrive in a separate tube.
Product Specifications
| Model | Dimensions (mm)
H x W x D | Tube Ø
(mm) | Bar
Config | Pipe
Centres | PTC Electric Element Watts | Thermostatic Electric Element Watts | Output
Δ T50°C
Watts / BTU’s | Output
Δ T60°C
BTU’s |
| | | | | | | | |
| 380 | 800 x 300 x 100 | 31.8 22 | 3-4-5 | 268 | 150 | 300 | 161 / 549 | 694 |
| 480 | 800 x 400 x 100 | 31.8 22 | 3-4-5 | 368 | 150 | 300 | 197 / 672 | 850 |
| 580 | 800 x 500 x 100 | 31.8 22 | 3-4-5 | 468 | 200 | 300 | 243 / 829 | 1048 |
| 680 | 800 x 600 x 100 | 31.8 22 | 3-4-5 | 568 | 200 | 600 | 269 / 918 | 1160 |
| 312 | 1200 x 300 x 100 | 31.8 22 | 3-4-5-6 | 268 | 250 | 600 | 240 / 819 | 1035 |
| 412 | 1200 x 400 x 100 | 31.8 22 | 3-4-5-6 | 368 | 300 | 300 | 294 / 1003 | 1268 |
| 512 | 1200 x 500 x 100 | 31.8 22 | 3-4-5-6 | 468 | 300 | 600 | 348 / 1187 | 1501 |
| 612 | 1200 x 600 x 100 | 31.8 22 | 3-4-5-6 | 568 | 250 | 600 | 402 / 1372 | 1734 |
| 316 | 1600 x 300 x 100 | 31.8 22 | 3-4-5-6-6 | 268 | 250 | 600 | 321 / 1095 | 1384 |
| 416 | 1600 x 400 x 100 | 31.8 22 | 3-4-5-6-6 | 368 | 400 | 600 | 391 / 1334 | 1686 |
| 516 | 1600 x 500 x 100 | 31.8 22 | 3-4-5-6-6 | 468 | 400 | 600 | 464 / 1583 | 2001 |
| 516 | 1600 x 600 x 100 | 31.8 22 | 3-4-5-6-6 | 568 | 400 | 600 | 536 / 1829 | 2312 |
