Aura 25 Straight White Dual Fuel Heated Towel Rail, Thermostatic + Timer

£203.00£285.00 inc. VAT

  • Aura 25 Heated Towel Rail – Straight
  • For dual fuel connection to mains electric and central heating
  • Prefilled with antifreeze solution
  • Supplied with dual fuel radiator valves and the R3 thermostatic electric element (not fitted)
  • Features: Timer, Thermostatic Control (Controls water temperature from 30°C – 70°C), Remote, Manual Controls, Controls water temperature from 30°C – 70°C,2 / 4 Hour Boost, Open Window / Door Recognition, Lot 20 Compliant
  • Splash Proof (IPX4-rated)
  • Tube Profile: 25mm round bars
  • Style: Standard ladder rail
  • Height Options: 800mm, 1200mm, 1500mm, 1800mm
  • Width Options: 300mm, 400mm, 500mm, 600mm
  • Colour: White
  • 1/2” BSP Sockets
  • Pipe centres = width of towel rail less 45mm
  • Wall Projection = 93 – 113mm (adjustable)
  • Wall Mounted (fixing kit supplied)
  • 10 year guarantee on towel rail. 2 year guarantee on element

Technical Drawings | User Manual – R3 Thermostatic Element

Payments can be made by Credit / Debit Cards and Paypal.

Description

Aura 25 Straight White Dual Fuel Thermostatic Towel Rail

The new generation of advanced controllable heating is now available with the R3 range. The Aura 25 R3 dual fuel heated towel rail delivers high quality and heating performance, making it perfect for heating bathrooms or drying linen. With the built-in 24 hour, 7 day timer, you can program the towel rail and save on running costs (in electric mode).

Manufactured to the highest standards, the radiator is made from thicker steel tubing and features deluxe quality 25mm cross bars, delivering energy efficient heat output and a more substantial aesthetic.

The R3 range of towel warmers provide complete control and efficiency. Designed to save as much energy as possible, and also be fully compliant with the LOT 20 energy efficiency directive.

Dual Fuel – Electric Mode (With the R3 Thermostatic Element)

The R3’s state of the art technology is cleverly integrated into the element to ensure tidy installation. All the elements functions are housed into a single unit. No additional connections are needed.

To use in electric mode, you simply tighten one of the dual fuel valves until it is closed and switch the element on.

The R3 has all features that you could ever need. 7-day time-control alongside the adjustable temperature control for the room or radiator. Meeting the LOT20 ECO Design energy efficiency regulations.   All settings can be changed with the user-friendly remote control.

  • IR Remote controller
  • 24/7 time control via remote control
  • Measures air temperature from 18°C – 32°C
  • Controls water temperature from 30°C – 70°C
  • Built-in open window/door recognition
  • ERP Lot 20 complaint
  • Rated IPX4 for use in bathroom zones
  • 24/7 time control via remote control
  • Manual control override directly on the element with 2 & 4 hour boost
  • Automatic frost protection @ 7°C

24 Hour Timer

Create your own heating schedules that work around your lifestyle. With 4 on and off times per day, allowing compete flexibility and control.



Intrinsic Heat Control

With the R3, accurately monitor the air temperature or rail’s surface temperature. So, whether you’re using the radiator to dry linen or heating the room, the R3s got you covered.

Open Window Recognition

The R3 recognises an open window / door and shuts off. Meaning, that your electricity bill isn’t spent on heating the great outdoors. This function can be switched off.

Temperature Lock

Completely lock the temperature or timer of the radiator. Set a maximum temperature that the radiator will reach. Ideal for public area’s or situations that require a maximum surface temperature.

Pin Protection

Anti-tamper pass code lock on remote control. Set a 4 digit code that has to be input to access the control.

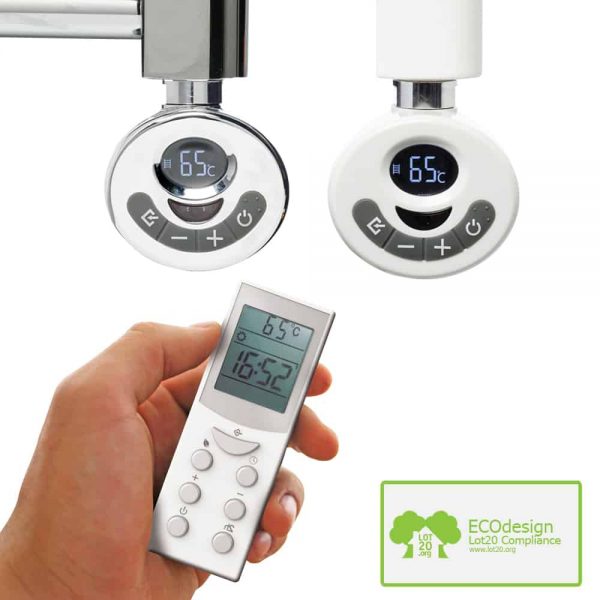

IR Controller

Wireless communication with the R3 remote controller. Weekly programmes and settings adjustment with the remote controller supplied with the R3 range.




Superior Quality. Higher Outputs.

The intricate treatment process for the bray, results in an impressive modern look.

Our towel warmers are highly polished for a very even glossy white finish and salt spray ASTMB117 tested, passing 250 hours in the salt test. Guaranteeing the longesrivity of the towel rail in your bathroom.

Manufactured from 1.5mm thick steel, the radiator around 50% thicker than the average towel warmer, maximising heat emission and preventing defects such as rusting and pinhole leaks.

We design our bathroom radiators with quality, aesthetics and efficiency in mind. Offering consistency and a 10-year Guarantee. So you can have long term peace of mind.

Dual Fuel. Year Round Heat.

Dual Fuel means the towel rail can be heated from the central heating system or as an electric rail. This allows for heat during the summer when, hopefully, the climate is warm enough for you to turn off your central heating.

Dual Fuel – Electric Mode

To use in electric mode, you simply tighten one of the dual fuel valves until it is closed and switch the element on.


Angled Chrome Dual Fuel Radiator Valves, Round Type, Solid Brass, 1/2″ BSP 15mm. For Heated Towel Rails / Warmers

Dual Fuel Valves – Central Heating Mode

With the electric element turned off, your dual fuel towel rail becomes like any other radiator in the house. When the central heating is switched on, the towel rail warms up.

Dual Fuel Assembly

Our angled dual fuel radiator valves are a study and well made, composed of solid brass with chrome plating. The valves are screwed into the bottom of the towel rail’s vertical pipes. The electric element is then screwed into the bottom of one of the dual fuel valves. The opposing valve has a blank plug connected to the remaining socket. The central heating pipes connect at a 90 degree angle to the towel rail. So they can come straight out of the inside of the wall, or run horizontally along the wall to connect to the valves.


Aura 25 Anthracite Straight Towel Warmer / Heated Towel Rail Radiator - Dual Fuel

Alternative Dual Fuel Valve Option

If you need the central heating pipes to connect to the towel rail vertically, by coming up out of the floor, we can supply our alternative dual fuel valve kit on request.  This consists of two straight radiator valves and two t-pieces. The t-pieces are inserted into the towel rail first, and the valves attach the their right angled socket, allowing the dual fuel towel rail to accept pipes from below.

Easy Wall Mount. Adjustable Brackets.

The quality of the Aura 25 makes it heavier than normal. As a result we have to supply the best fixing system available.

The Bray’s brackets have internal metal threads for a more secure fitting against the wall. The brackets also provide an adjustable wall projection. This allows you change the wall projection between 93-113mm, making it ideal if the wall is uneven e.g a half-tiled wall. Cheaper towel rails provide less secure brackets which are flimsy at best.

The top of the Aura 25 towel rail is well-finished and tidy. One side is flat without obstruction, whilst the other side houses the chrome air vent. There are no nasty nickel plated vents and blank plugs on display.

Product Specifications

ModelDimensions (mm)
H x W x D
Bar
Config
Pipe Centres (mm)PTC Electric Element (Watts)Thermostatic Element (Watts)Output
Δ T50°C
Watts / BTU’s
Output
Δ T60°C
BTU’s
380800 x 300 x 93-1133-5-6255100300271 / 9251169
480800 x 400 x 93-1133-5-6355150300346 / 11811492
580800 x 500 x 93-1133-5-6455150300420 / 14331811
680800 x 600 x 93-1133-5-6555200300495 / 16892135
3121200 x 300 x 93-1134-5-13255200300424 / 14471829
4121200 x 400 x 93-1134-5-13355200300543 / 18532342
5121200 x 500 x 93-1134-5-134553003004663 / 22622859
6121200 x 600 x 93-1134-5-13555400600783 / 26723377
5151500 x 500 x 93-1134-5-7-12455300300820 / 279823536
6151500 x 600 x 93-1134-5-7-12555400600969 / 33064192
4181800 x 400 x 93-1134-5-12-13355400600793 / 27063420
5181800 x 500 x 93-1134-5-12-13455600600969 / 33064179
6181800 x 600 x 93-1134-5-12-135556006001146 / 39104942

Quality Tested

  • VDE approved
  • CE approved. Compliant with BS EN60335-1
  • Splashproof – IPX4 rated, suitable for bathroom zone 1
  • Pre-filled heating solution protected to -8°c
  • Safety cut-out
  • ASTMB117 anti-corrosive salt tested to 250 hrs

Additional information

WeightN/A
DimensionsN/A
Brand

Splash Proof Rating

IPX4

Towel Rail Connection

Thermostatic Electric Dual Fuel

MPN

Material

Mild Steel

Control

dual-fuel

Material

Mounting Type

Wall Mounted

Towel Rail Features

Child Lock, Open Window Recognition, Remote Control, Thermostat – Variable Temperature, Timer

Towel Rail Shape

Height in mm

, , ,

Width in mm

, , ,
