Description

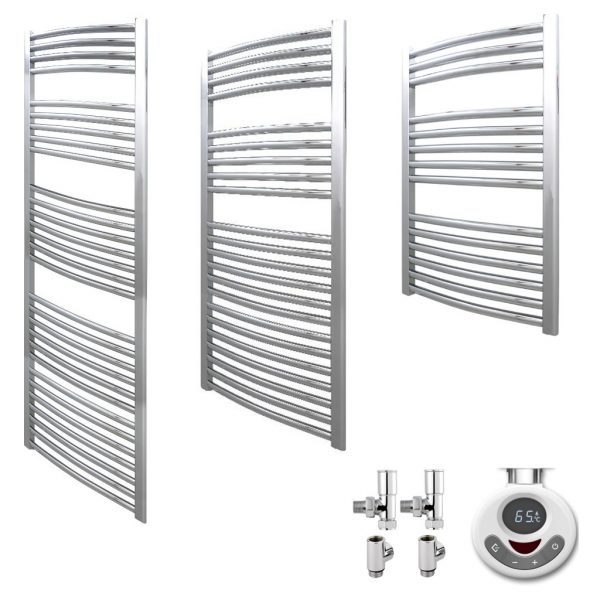

Aura 25 Curved Chrome Duel Fuel Heated Towel Rail, Thermostatic Timer
The new generation of advanced controllable heating is now available with the R3 range. The Aura 25 R3 dual fuel thermostatic heated towel rail delivers high quality heating performance, making it perfect for heating bathrooms or drying linen.

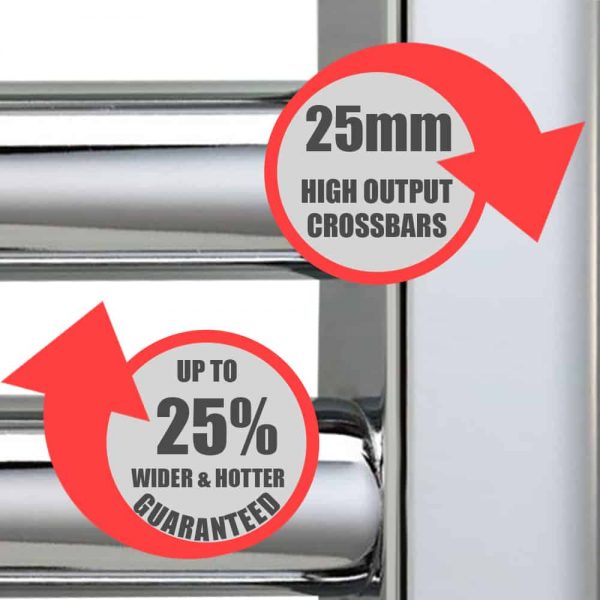

Manufactured to the highest standards, the radiator is manufactured from thick steel tubing and features deluxe-quality 25mm cross bars – delivering energy-efficient heat output and a more substantial aesthetic.
The R3 range of towel warmers provide complete control and efficiency. Designed save as much energy as possible, and be fully compliant with the LOT 20 energy efficiency directive.
Complete Control. R3 Generation.
The R3’s state of the art technology is cleverly integrated into the element to ensure tidy installation. All the elements functions are housed into a single unit. No additional connections are needed.
The R3 has all features that you could ever need. 7-day time-control alongside the adjustable temperature control for the room or radiator. Meeting the LOT20 ECO Design energy efficiency regulations. All settings can be changed with the user-friendly remote control.
- IR Remote controller
- 24/7 time control via remote control
- Measures air temperature from 18°C – 32°C
- Controls water temperature from 30°C – 70°C
- Built-in open window/door recognition
- ERP Lot 20 complaint
- Rated IPX4 for use in bathroom zones
- 24/7 time control via remote control
- Manual control override directly on the element with 2 & 4 hour boost
- Automatic frost protection @ 7°C
24 Hour Timer
Create your own heating schedules that work around your lifestyle. With 4 on and off times per day, allowing compete flexibility and control.
Intrinsic Heat Control
With the R3, accurately monitor the air temperature or rail’s surface temperature. So, whether you’re using the radiator to dry linen or heating the room, the R3s got you covered.
Open Window Recognition
The R3 recognises an open window / door and shuts off. Meaning, that your electricity bill isn’t spent on heating the great outdoors. This function can be switched off.
Temperature Lock
Completely lock the temperature or timer of the radiator. Set a maximum temperature that the radiator will reach. Ideal for public area’s or situations that require a maximum surface temperature.
Pin Protection
Anti-tamper pass code lock on remote control. Set a 4 digit code that has to be input to access the control.
IR Controller
Wireless communication with the R3 remote controller. Weekly programmes and settings adjustment with the remote controller supplied with the R3 range.
Superior Quality. Higher Outputs.
The intricate treatment process for the Aura 25, results in an impressive modern look.
Our chrome plating is on average 10 microns thick (not including the pre-treatment base.) Our towel warmers are highly polished for a very even fluid finish and salt spray ASTMB117 tested, passing 250 hours in the salt test. Guaranteeing the longesrivity of the towel rail in your bathroom.
Manufactured from 1.5mm thick steel, the radiator around 50% thicker than the average towel warmer, maximising heat emission and preventing defects such as rusting and pinhole leaks.
We design our bathroom radiators with quality, aesthetics and efficiency in mind. Offering consistency and a 10-year Guarantee. So you can have long term peace of mind.
Dual Fuel. Year Round Heat.
Dual Fuel means the towel rail can be heated from the central heating system or as an electric rail. This allows for heat during the summer when, hopefully, the climate is warm enough for you to turn off your central heating. This is an extremely simple procedure. Simply close one valve and turn the electric element on.
| Model | Dimensions (mm) H x W x D | Bar Config | Pipe Centres (mm) | PTC Electric Element Watts | Thermostatic Electric Element Watts | Output Δ T50°C Watts / BTU’s Chrome – White | Output Δ T60°C BTU’s Chrome / White |
| 580 | 800 x 500 x 88-108 | 3-5-6 | 455 | 150 | 300 | 275 / 938 – 420 / 1433 | 1186 / 1811 |
| 680 | 800 x 600 x 94-114 | 3-5-6 | 555 | 200 | 300 | 324 / 1105 – 495 /1689 | 1397 / 2132 |
| 512 | 1200 x 500 x 88-108 | 4-5-13 | 455 | 300 | 300 | 428 / 1460 – 663 / 2262 | 1846 / 2859 |
| 612 | 1200 x 600 x 94-114 | 4-5-13 | 555 | 400 | 600 | 505 / 1723 – 783 / 2672 | 2178 / 3377 |
| 515 | 1500 x 500 x 88-108 | 4-5-7-12 | 455 | 300 | 300 | 534 / 1822 – 820 / 2798 | 2303 / 3536 |
| 615 | 1500 x 600 x 94-114 | 4-5-7-12 | 555 | 400 | 600 | 631 / 2153 – 969 / 3306 | 2721 / 4179 |
| 518 | 1800 x 500 x 88-108 | 4-5-12-13 | 455 | 600 | 600 | 638 / 2177 – 969 / 3306 | 2752 / 4179 |
| 618 | 1800 x 600 x 94-114 | 4-5-12-13 | 555 | 600 | 600 | 754 / 2573 – 1146 / 3910 | 3252 / 4942 |
TUBE Ø (mm): 25 30 x 40 D Section (all models)
Technical Drawings
